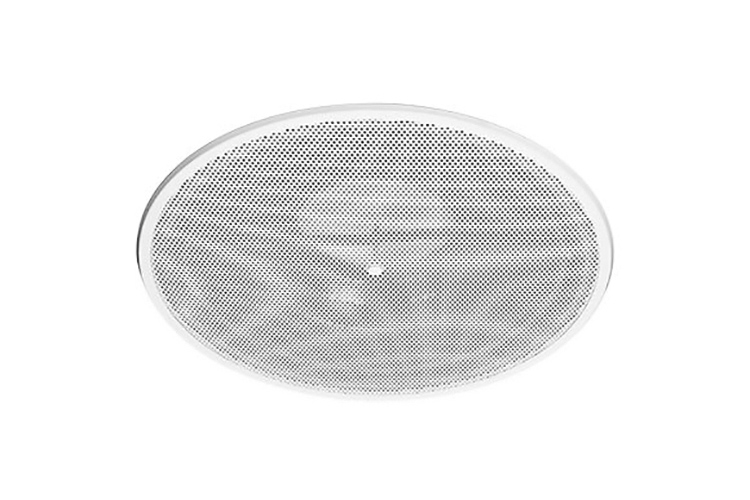

CIRCULAR OPTICLEAN® OC-R
For installation in suspended ceiling systems.
FEATURES
- Radial, horizontal jet spread at high level of thermal comfort
- Perforated square face, grid dimensions: 600 x 600 mm and 625 x 625 mm
- Square design for integration into gypsum board ceilings
- Very uniform air discharge; as a result, no or extremely low dirt accumulation on the ceiling
- Segment covers enable to adapt the supply air distribution to the room geometry, e.g. narrow corridor with 180° discharge
DATA
| Volume Flow Rate Range: | 25 – 169 l/s [90 – 610 m³/h ] |
|---|---|
| Sizes: | 300 and 500 |
| Discharge Height: | 2.5m – 4.5m |
