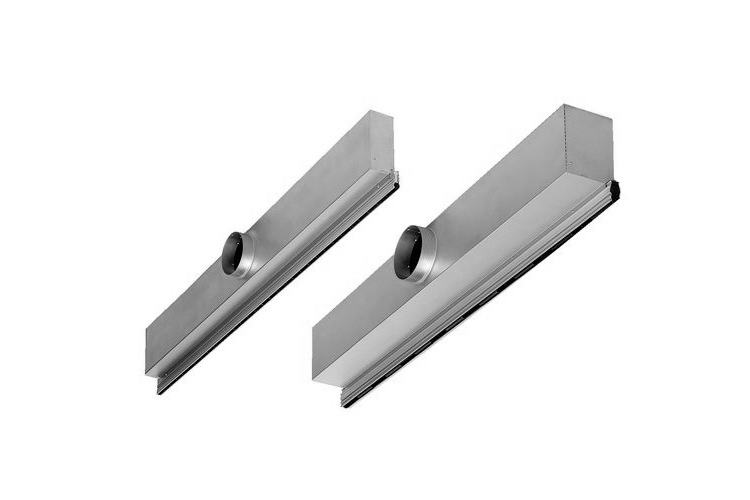

ADJUSTABLE INDUCTION OUTLET IN-V
For installation flush with ceiling and where manual adjustment of discharge direction is required.
FEATURES
- Stable single jets with alternate or one-sided discharge, for all ceilings
- Discharge direction adjustment from horizontal to nearly vertical
- Type IN-V2: element width: 28 mm per row; also available in 2, 3 or 4 rows
- Tpye IN-V3: element width: 15 mm; 1 row
- With connection box and circular connection spigot
- Also available as return air inlet
DATA
| Volume Flow Rate Range: | 2.8 – 110 l/(s•m) [10 – 400 m³/(h•m)] |
|---|---|
| Element Width: | 15 or 28 mm |
| Lengths | 1050mm, 1200mm, 1350mm and 1500mm |
| Discharge Height: | 2.5m – 5m |
