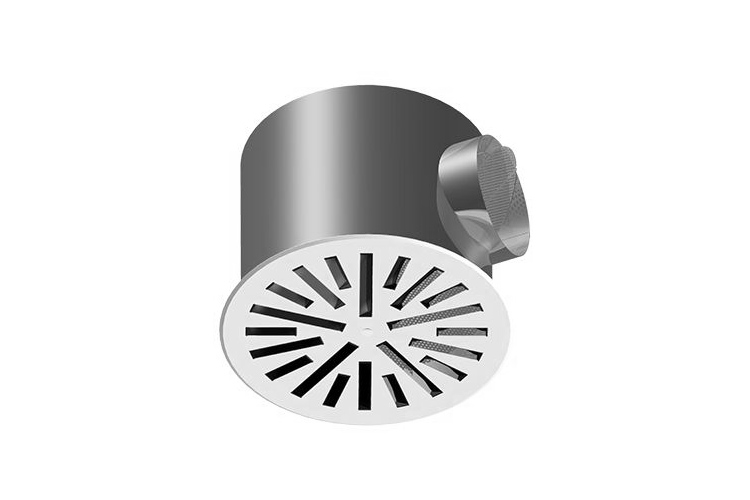

RADIAL SLOT OUTLET RL-C
For installation flush with ceiling or downstanding.
FEATURES
- Discharge direction manually adjustable from horizontal to downward incline
- Circular air outlet element with circular connection box for exposed mounting or with cubic connection box for installation flush with ceiling
- With circular bar array
- Radial jet dispersion
- Individual bars can be closed thus enabling asymmetric jet dispersion
- Easy screw fastening from below
- Also available as return air inlet
DATA
| Volume Flow Rate Range: | 22 – 320 l/s [80 – 1 150 m³/h] |
|---|---|
| Nominal Sizes: | 375, 470, 600 and 750 |
| Discharge Height: | 2.5m – 4.5m |
