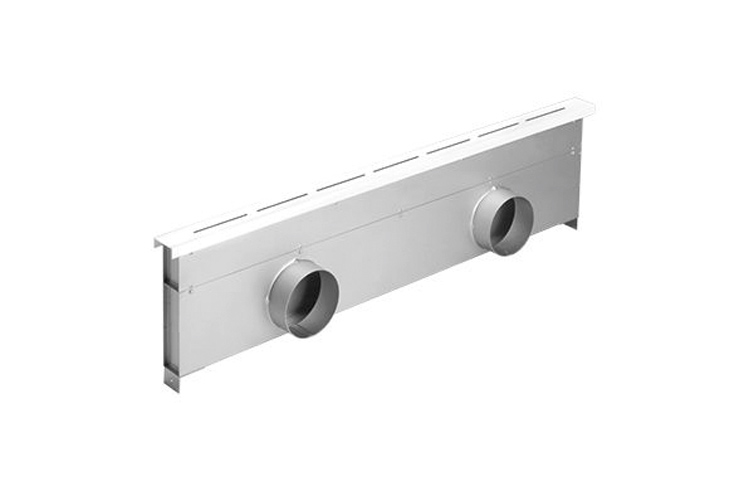

WINDOW AIR CURTAIN UNIT FSG
Installation in window sills for upward-directed air curtain to compensate for heat transmission by the window when cooling and heating.
FEATURES
- Linear air curtain
- Installation in floor or window sill, along the facade
- Max. distance to glass pane: 200 mm
- Small space required (width 55 mm, height 260 to 310 mm)
- With connection box for flexible duct Connection
DATA
| Volume Flow Rate Range: | 8 – 25 l/(s•m) [30 - 90 m³/(h•m)] * |
|---|---|
| Slot Width: | 3mm – 10 mm |
| Standard Lengths: | 1m, 1.2m, 1.4m and 1.6m |
| Penetration Height: | 2m - 10m |
