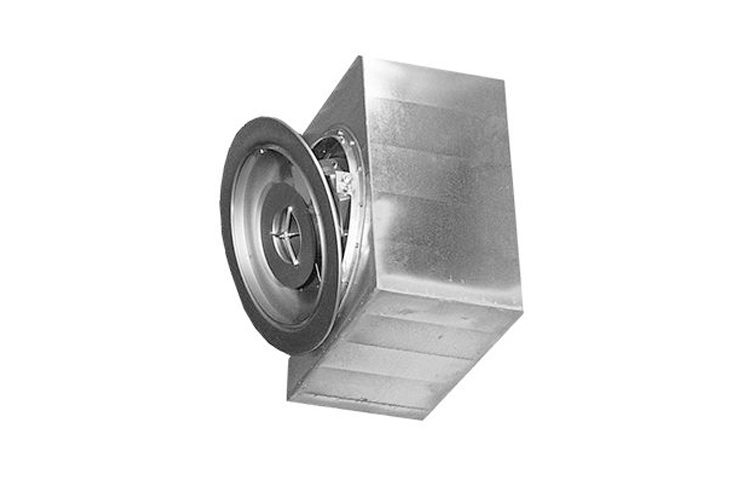

SWIVEL JET OUTLET SW
For mounting on walls, pillars or galleries, where large penetration depths and high volume flow rates per air outlet are required.
FEATURES
- Circular, high-turbulence free jet
- Discharge direction adjustable in a plane by ± 20° to the air outlet axis, manually or with servomotor
- Penetration depth adjustable by opening or closing the core tube
- Optional ring insert for very large penetration depths
- Connection to side of main supply air duct or with connection box
DATA
| Volume Flow Rate Range: | 110 – 2 800 l/s [400 – 10 000 m³/h] |
|---|---|
| Nominal Sizes: | DN 315, DN 400, DN 600 and DN 710 |
| Penetration Depth: | up to 30m |
| Discharge Height: | 4m – 6m |
